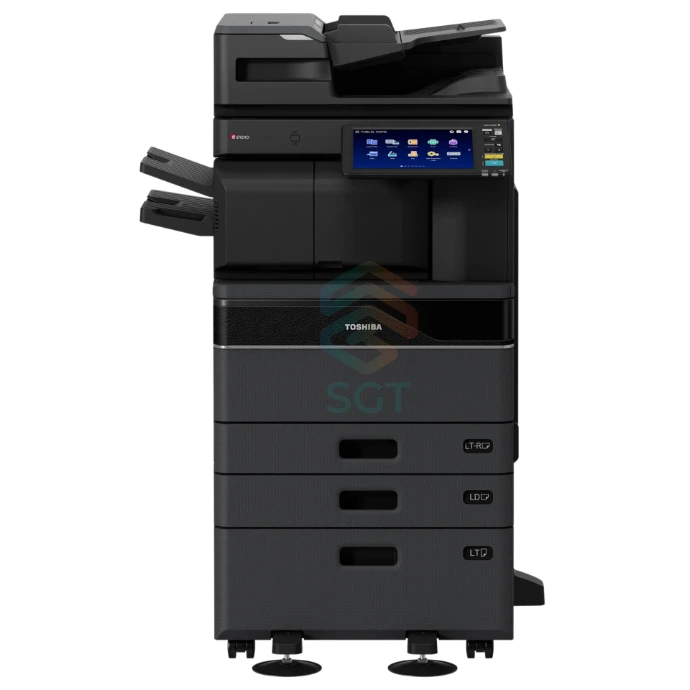

e-STUDIO 3028A
Create a powerful printing hub that frees up space at the office. Along with its compact design, our monochrome MFP’s cloud features and advanced security make it easy and safe for hybrid teams to get work done from anywhere.
- Print faster with speeds up to 30 pages per minute
- Print, copy, scan, and fax in a small footprint
- Free your team to work remotely with cloud features
- Safeguard information with advanced security
Dual Scan Document Feeder
Available with Double Feed Detection – Scans up to 240 IPM; holds up to 300 originals (refillable)
10.1” Tiltable Front Panel
Makes programming jobs easier than ever – even for wheelchair users – and is Section 508 friendly
Card Reader Pocket
Enables badge authentication to control device access
Soft Closing Drawers
Automatically pull drawer closed when initiated and provide a luxury experience
65-Sheet Stapling Finishers and an Output Capacity of up to 3,000 Pages
Enables bigger jobs
Saddle Stitch Finishing
Enables up to 60-page booklets, and unique avalanche tray increases exit capacity
Tandem LCF Pedestal
Holds 2 x 1,000-sheet stacks of letter-size paper, while refillable design allows users to add paper while MFP is in use
2,000-Sheet External LCF
Boosts paper capacity to an amazing 5,200 sheets
Copy Process
Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing
Display
10.1” Color WSVGA Touch Screen Tilting Display
Copy Speed
30 PPM (LT)
First Copy Out
Less Than 4.3 Seconds
Warm-Up Time
From Powering on: Approx. 20 Seconds
From Sleep & Low Power: Less Than 20 Seconds
Copy Resolution
600 x 600 dpi
Stack Feed Bypass
3.9” x 5.8” to LD, Envelope
Multiple Copying
Up to 999 Copies
Paper Capacity
Standard 1,200 Sheets/Max. 5,200 Sheets
Original Feed
300-Sheet DSDF or DSDF with Double Feed Detection or 100-Sheet RADF
Max. Original Size
LD/A3
Paper Feed Sizes
Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only, Opt. 2,000-Sheet External LCF-LT Only
Paper Weights
Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-16 lb Bond-140 lb Index, Opt. 2,000-Sheet External LCF-LT-16 lb Bond-140 lb Index
Duplex
Standard Automatic Duplex Unit (16 lb Bond-140 lb Index)
Reproduction Ratio
25% to 400%
Max Duty Cycle
Max. 100K Month
Weight
Approx. 120 lb
Approx. Dimensions
26” (W) x 25.2” (D) x 41.2” (H)
Toner Yield
43.9K @ 5%
Power Source
120 Volts, 50/60 Hz, 12 Amps
Power Consumption
Maximum 1.8kW (120V)
Plug Type
NEMA 5-15
Memory
4GB
Hard Disk Drive
128GB Solid State Drive (SSD)
PDL
PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Speed
25 PPM (LT)
Print Resolution
600 x 600 dpi (5 bit) or 1,200 x 1,200 dpi (2 bit) or 3,600 (Equivalence) x 1,200 dpi (with Smoothing) (PS3 Only)
Operating Systems
Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (macOS X 10.10-15, 12), Unix®, Linux®
Network Protocols
TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments
Printing Protocols
SMB V1-3, LPR/LPD, IPP V1.2 w/Authentication (TLS 1.2/1.3), AppleTalk® PAP or EtherTalk, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, Bluetooth (HCRP/BIP/OPP/FTP), WS Print, FTP
Print Drivers
Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows Server® 2016/19/22, Windows® 10, 11 (64-bit), macOS X 10.12-15, 11, 12
Interface
RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth
Wireless Device
AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play)
Device Management
TopAccess
Account Control
Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
Accessibility Features
Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout, Audible Beeps, Optional Voice Assist
Security Features
User Authentication, Trusted Platform Module, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408)* with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, Biometric Authentication *Conformance with HCD-PP v1.0 in High Security Mode
Environmental Stds
ENERGY STAR®, EPEAT Gold, Californian Proposition 65
Certification
WHQL (Windows® 8, 8.1, 10, 11, 2012, 2012 R2, 2016/19/22), Novell®, Citrix®, SAP, AirPrint® and Mopria®
Scan Speed
DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color)
Scan Weights
DSDF Simplex or Duplex: 9.3-110lb Bond RADF Scan: Simplex: 9.3-41.8lb Bond, Duplex: 13.3-41.8lb Bond
Scan Modes
Standard: Full Color, Auto Color, Monochrome, Grayscale DOC/XLS/PPT/PDF
Scan Resolution
600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi
File Formats
Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX
Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX
Image Compression
Color/Grayscale: JPEG (High, Middle, Low)
Compatibility
Super G3
Data Compression
MH/MR/MMR/JBIG
Transmission Speed
Approx. 3 Seconds Per Page
Fax Modem Speed
Up to 33.6 Kbps
Memory Transmission
100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job
Scan Speed
0.7 Seconds Per Page, Maximum 73 IPM
Operation Method
Color Touch Screen Control Panel or Client PC
Number of Boxes
1 Public Box; 200 Private User Boxes
Capacity of Boxes
100 Folder per Box; 400 Documents per Folder/Box; 200 Pages per Document
